Density Fog Systems | A Complete Guide

by | Guides, Intruder Alarms, Security Systems

Thieves can’t steal what they can’t see. This is the phrase we use when offering density fog systems to our customers. Especially now that security threats are increasingly becoming more sophisticated.

Many businesses utilise advanced technologies to protect their assets. This article explores how density fog systems can integrate with various security technologies to create a complete defence strategy. We can aid in safeguarding your assets.

What Are Density Fog Systems?

Density fog systems are also known as security fog. We use density fog as a security technology which impairs visibility drastically in the event of unauthorised access.

When a density fog system is triggered, thick fog will fill the room within seconds, making it impossible for intruders to see anything.

The Concept of Density Fog

The concept behind density fog is straightforward yet highly effective. By obscuring an intruder’s view, it deters theft. This system quickly makes it difficult for intruders to locate and steal valuable items. Density fog systems are non-toxic and safe for humans, animals and electronic equipment. It simply impacts visibility and nothing else.

There were 2.7 million incidents of theft in the UK in 2023.

How Does Density Fog Work?

As mentioned above, a density fog system is a sophisticated security measure. These systems consist of several components working in unison. The primary elements of a density fog system include:

  • Fog generator.
  • Fog fluid.
  • Triggering mechanism.

Here is a detailed breakdown of how these components work together to provide enhanced security.

Fog Generator

Once filled with liquid, the machine is ready to emit dense fog, significantly reducing visibility in the room.

  • Central component of the density fog system.
  • Responsible for converting the fog fluid into a dense, obscuring mist.
  • Rapidly heats the specially formulated fog fluid to its vaporisation point.
  • Vaporises the formula and expells through nozzles or vents.

For optimal effectiveness, the fog generator is typically installed in a strategic location within the premises. This ensures that the fog can quickly and efficiently fill the designated area, providing maximum coverage.

Orisec Basic Model

Fog Fluid

  • A blend of chemicals that, when vaporised, produces a thick, white fog.
  • Generally non-toxic and safe for humans, animals and sensitive equipment.
  • Stored in a reservoir within the fog generator.
  • The system will always be ready to deploy the fog when needed.

The fog produced by the system is designed to remain suspended in the air for an extended period, often up to an hour.

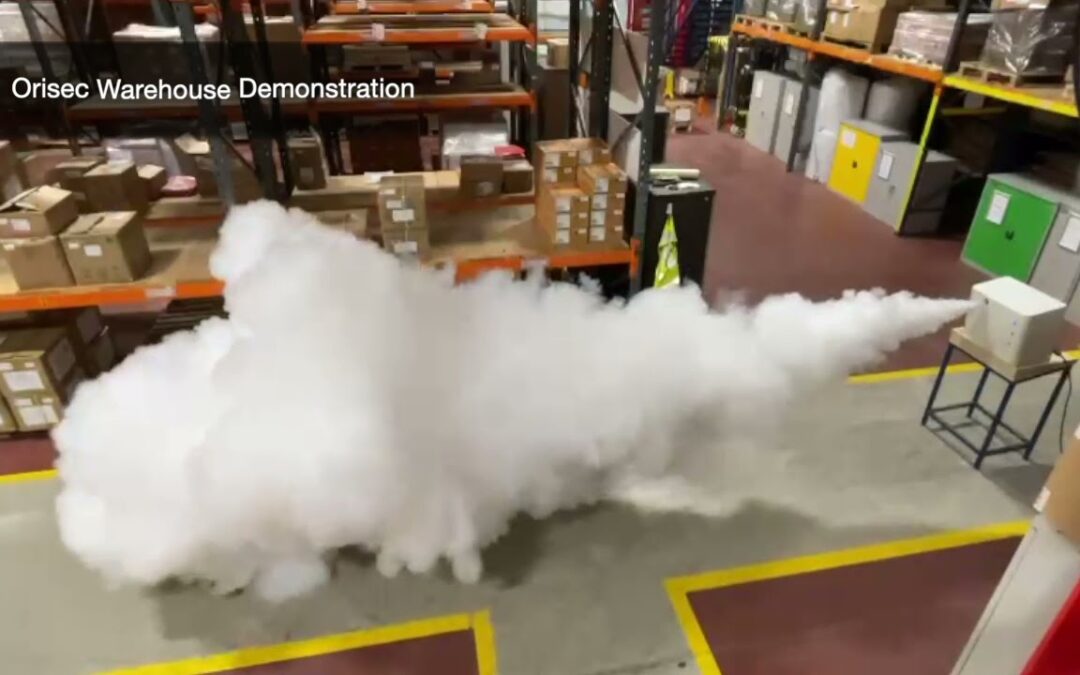

Density fog in warehouse

Triggering Mechanism

  • Integrates with existing security system (alarms and motion detectors).
  • Triggers when intrusion is detected.
  • The triggering mechanism activates the fog generator.
  • Integration ensures fog is deployed upon detecting unauthorised access.
  • The triggering mechanism is designed to be highly sensitive and reliable.

What Industries Need A Density Fog System?

Burglar

Density fog systems can benefit a wide range of industries. These density fog systems offer an immediate and effective response to intrusions, making them ideal for environments where high-value assets are at risk.

This includes:

  • Banks.
  • Jewellers.
  • Retail Stores.
  • Warehouses.
  • Distribution Centres.
  • Museums.
  • Art Galleries.

If you’re interested in office fire safety, click here.

Jewellers

Jewellery stores are often targets for thieves due to the high value of the items they stock. The use of a density fog system can protect these items by creating a visual barrier that makes it difficult for intruders to locate and steal jewellery. This is especially effective in preventing smash-and-grab robberies, where speed is a critical factor for thieves. The immediate deployment of fog upon detecting a break-in disorients the intruders, forcing them to abandon their attempts and leave the premises.

Banks

Banks are prime targets for theft due to the large amounts of cash and valuable documents they hold.

A density fog system provides an immediate barrier. This combats both unauthorised access and theft of cash.

During a break-in, the rapid deployment of fog can prevent intruders from accessing vaults and other critical areas. Thieves can’t steal what they can’t see.

Density fog protects physical assets and safeguards sensitive information that could be compromised during a robbery. The dense fog acts as a visual shield.

banking teller

Warehouses and Distribution Centres

Warehouses and distribution centres that store valuable inventory are also at risk of theft. These locations often house large quantities of merchandise, making them attractive targets for organised theft. Density fog systems can protect these locations by creating an environment where visibility is severely impaired.

cctv for retail

Retail Stores

High-end retail stores are absolutely at risk. Anywhere that sells electronics, designer goods and other valuable items can greatly benefit from the added security. You should choose a density fog system. These systems can prevent large-scale theft during break-ins, offering store owners peace of mind.

Museums and Art Galleries

Museums and art galleries house priceless works of art and artefacts, making them prime targets for theft and vandalism. The use of density fog systems provides an additional layer of security, ensuring that these valuable items are protected. When an intrusion is detected, the fog system activates, filling the space with a dense mist. This not only prevents theft but also protects the artworks and artefacts from potential damage during a break-in. For curators and museum directors, the security of their collections is of utmost importance. Density fog systems offer a reliable means of safeguarding their valuable assets and preserving cultural heritage for future generations.

FRA Banner

The Benefits of Using a Density Fog System

By creating an environment where visibility is severely limited, density fog acts as a powerful deterrent against theft and vandalism. The dense fog, deployed almost instantaneously, transforms the area into an impenetrable cloud. Therefore, rendering any attempt to locate and steal valuables futile.

1. Immediate Obstruction

One of the most significant advantages of a density fog system is its ability to provide immediate obstruction. The fog is deployed within seconds of a security breach, ensuring that intruders are instantly confronted with an environment in which they cannot see their hands in front of their faces, let alone valuable items. This rapid deployment is important in high-risk situations where every second counts. The sudden loss of visibility forces intruders to abandon their plans and leave the premises quickly, as they are unable to navigate or identify targets in the dense fog. The effectiveness of this immediate obstruction lies in its ability to disorient and confuse, significantly reducing the intruder’s ability to carry out their intended crime.

Density Fog Intruder Alarm

2. Non-Damaging

Another benefit of density fog systems is that they are non-damaging. Unlike some security measures that might cause damage to property or pose health risks, density fog is non-toxic and safe for all environments. It does not damage electronic equipment, furnishings, or pose any health risks to humans or pets. This makes density fog a preferred choice for sensitive areas such as museums, art galleries, and high-end retail stores.

3. Cost-Effective

Cost-effectiveness is another significant benefit of density fog systems. Compared to other high-tech security measures, density fog systems are often more affordable and provide a considerable return on investment. They require minimal maintenance and have a long lifespan. This means that the costs incurred at installation are offset by the system’s durability and longevity. Additionally, by preventing theft and reducing the likelihood of loss, density fog systems help businesses save on potential financial losses.

desity fog

4. Psychological Deterrent

The presence of a density fog system also acts as a powerful psychological deterrent. Potential intruders who are aware that a property is equipped with a density fog system are less likely to target it. The knowledge that any attempt at theft will be met with an immediate and impenetrable barrier discourages would-be criminals from even attempting a break-in.

5. Protection of High-Value Items

For businesses and individuals that possess high-value items, such as jewellery, cash, electronics, or sensitive information, security protection is essential. Density fog systems offer an additional layer of security that significantly hinders thieves’ ability to access these valuable assets. When the fog is deployed, it creates an impenetrable visual barrier, making it incredibly difficult for intruders to locate and steal items. This immediate obstruction not only protects physical assets but also serves to safeguard sensitive information from falling into the wrong hands.

Integrating a Density Fog System

For maximum effectiveness, density fog systems are often combined with other security measures to create a comprehensive security solution. By working in tandem with various security technologies, density fog enhances overall protection. Here is an in-depth look at how density fog systems can be effectively combined with other security measures.

Alarms

Alarms are typically the first line of defence in a security system. They serve as an immediate alert to both the occupants of the building and the security personnel when a breach occurs. When an alarm is triggered, it can simultaneously activate the density fog system. The loud noise of the alarm, combined with the sudden obscuring of visibility by the dense fog, creates a highly stressful environment for intruders. This dual assault on the senses – auditory from the alarm and visual from the fog – significantly increases the likelihood that intruders will abandon their attempt.

NSI alarm OHEAP in Derby and Nottingham

Motion Detectors

Motion detectors play a vital role in triggering density fog systems. These sensors detect unauthorised movement within a secured area and activate the fog system at the earliest possible moment. By deploying the fog immediately upon detecting motion, the system maximises its effectiveness in preventing theft. The rapid response time ensures that intruders are confronted with the dense fog almost as soon as they breach the area.

CCTV Cameras

While density fog impairs visibility within the room where it is deployed, CCTV cameras positioned outside the fogged area can still capture footage. These cameras can record the intruders as they approach and leave the premises, providing visual evidence. The footage captured by external CCTV cameras can be instrumental for law enforcement in identifying and apprehending the suspects. Additionally, some advanced CCTV systems can include thermal imaging or infrared capabilities, which can still function effectively even in dense fog conditions.

CCTV Dome Camera in a Car Park

Access Control Systems

Integration with access control systems allows for precise control over when and where the density fog is deployed. For instance, if an intruder attempts to access a restricted area without proper authorisation, the access control system can trigger the fog system to prevent further access. This targeted deployment ensures that the fog is used efficiently and only in areas where it is needed. Additionally, access control systems can provide a record of who attempted to gain access and when.

Remote Monitoring

Many modern security systems offer remote monitoring capabilities, allowing security personnel to oversee the premises in real time from a remote location. When a density fog system is integrated with remote monitoring, security personnel can immediately respond to a breach. They can monitor the situation as it unfolds, coordinating with law enforcement and providing updates on the intruders’ movements and actions.

Fire and Safety Systems

Ensuring that density fog systems are integrated with fire and safety systems is imperative to avoid conflicts during emergencies. Modern density fog systems are designed to work harmoniously with fire alarms and suppression systems. This integration ensures that the deployment of fog does not hinder emergency responses in the event of a fire. For example, the fog system can be configured to deactivate if a fire alarm is triggered, allowing fire suppression systems to operate without obstruction.

small business alarm
